Tigo Solar Module Optimizer With 1.2m MC4 Cables

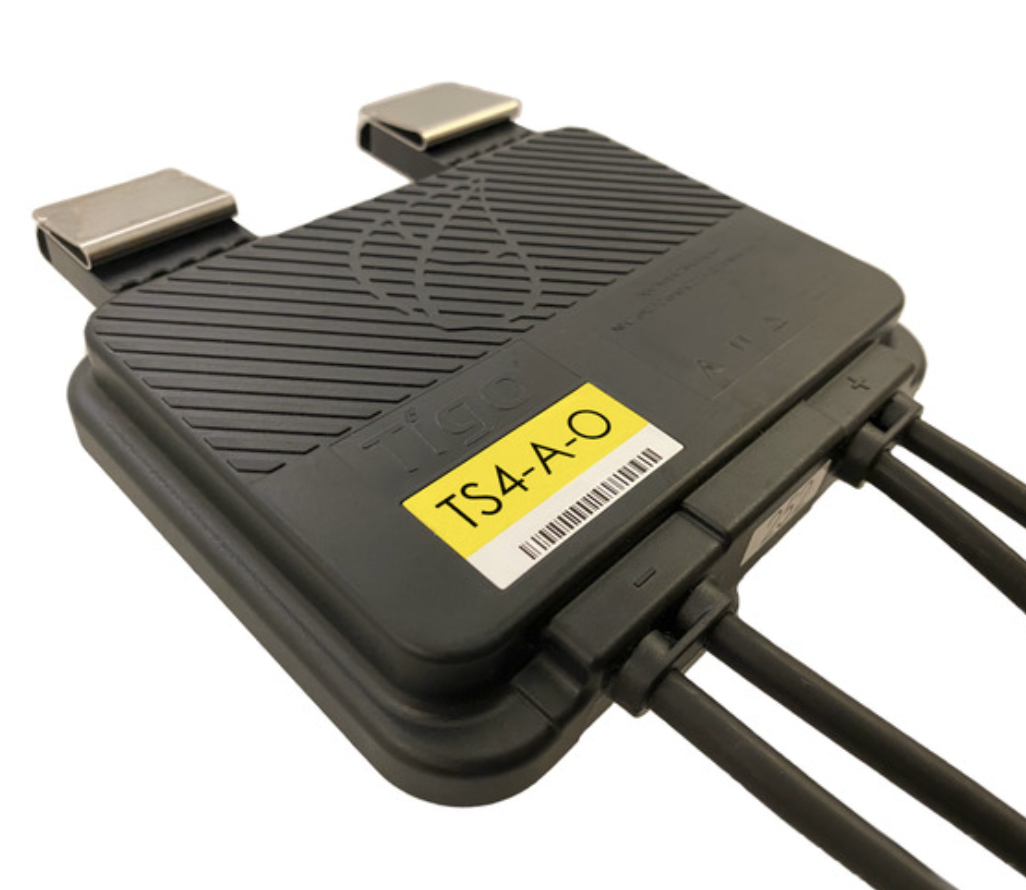

Tigo TS4-A-O Module Level Optimizer

NOTE: Tigo TS4-A-F can be used with TS4-A-2F but cannot be used with TS4-A-M, TS4-A-S, TS4-A-0 units due to different communication architectures.

Part number: 461-00252-32

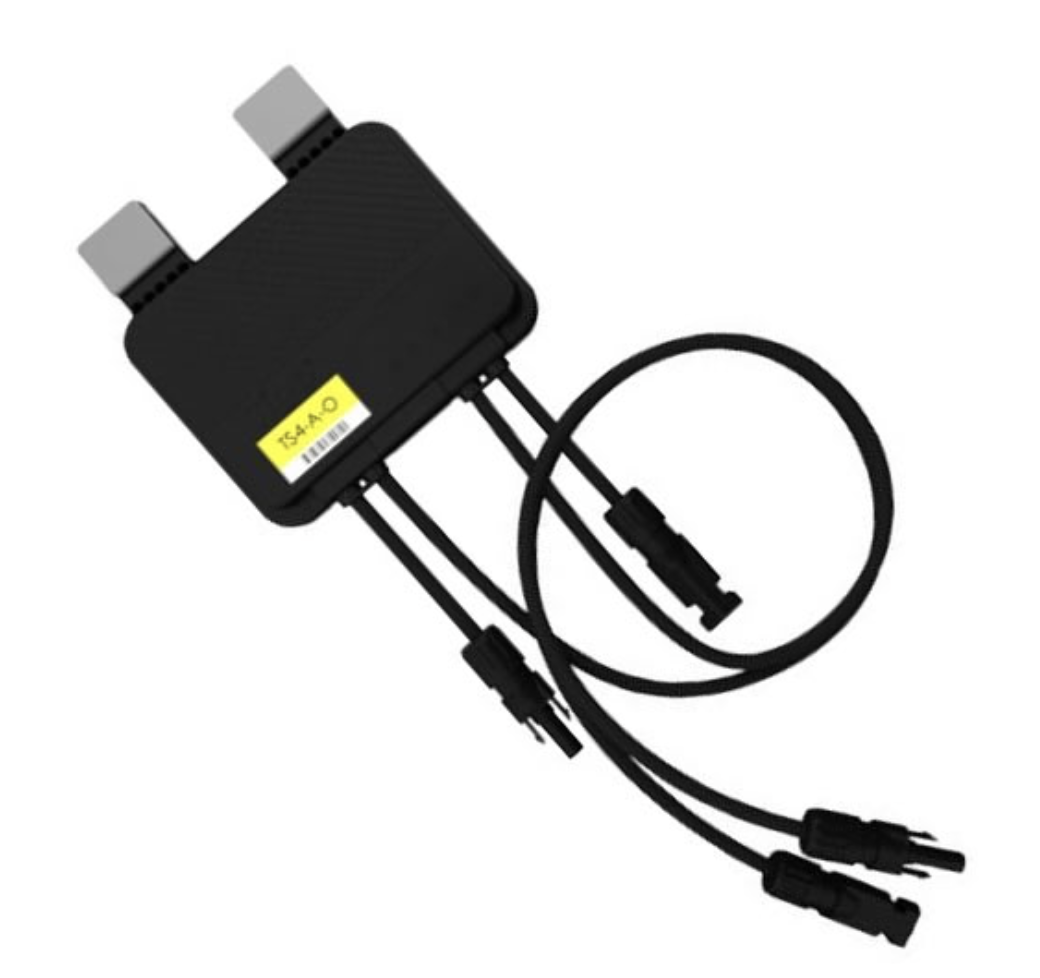

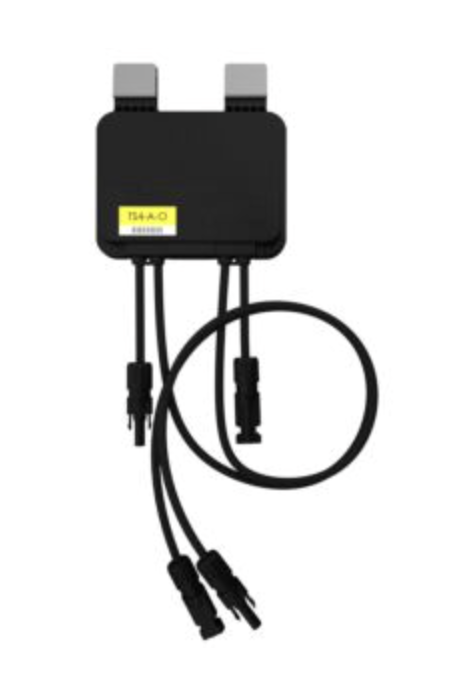

Comes with 1.2 meter MC4 connector cables.

Optimization is a Flex MLPE function available as an integrated modular junction box base (TS4-O) or as an add-on unit (TS4-A-O). Design using unequal string lengths, mixed orientations, or areas of mismatch. Install in shaded areas with a reduced setback ratio. In addition to optimization, the TS4-A-O enables module level monitoring, and rapid shutdown in compliance with NEC 2014, 2017, 2020.

Features and Benefits:

• Higher performance optimizer with Predictive IV Technology (PIV)

• The ONLY optimizer with selective deployment

• Includes the benefits of Safety & Monitoring

• Meets US NEC rapid shutdown requirements

• Optimizes right out of the box

• Shade and age tolerance to maximize lifetime yield

• Works wirelessly with the TAP & CCA

• Configuration: 1 module per TS4

• Required components: Cloud Connect Advanced (CCA) and Tigo Access Point (TAP)
