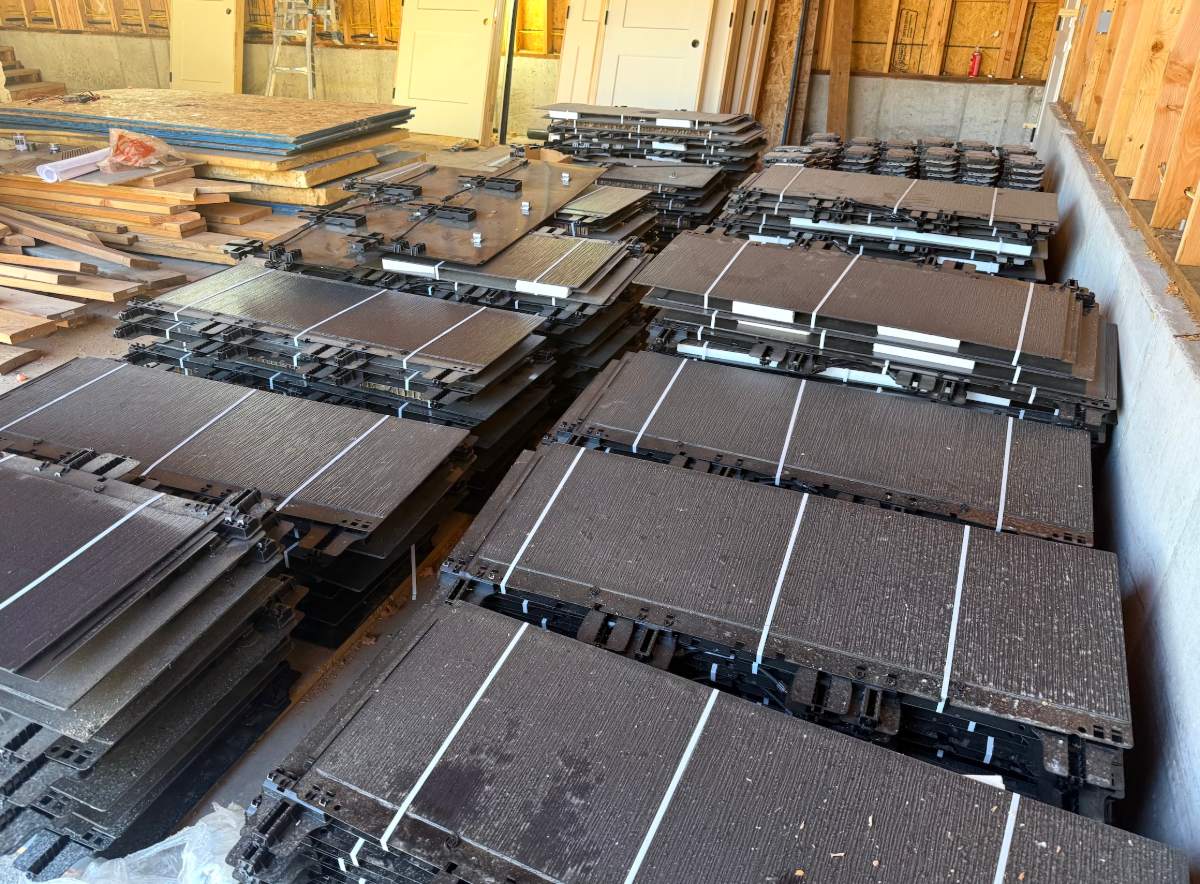

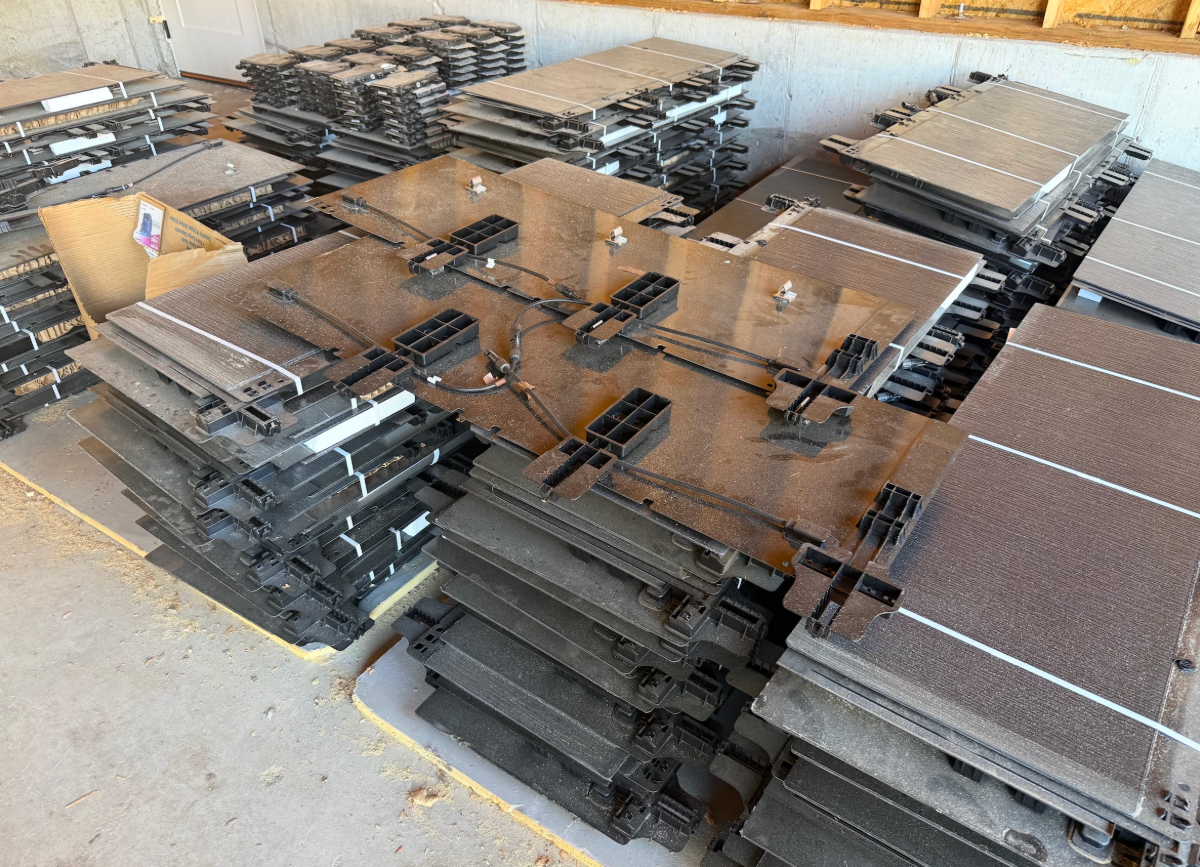

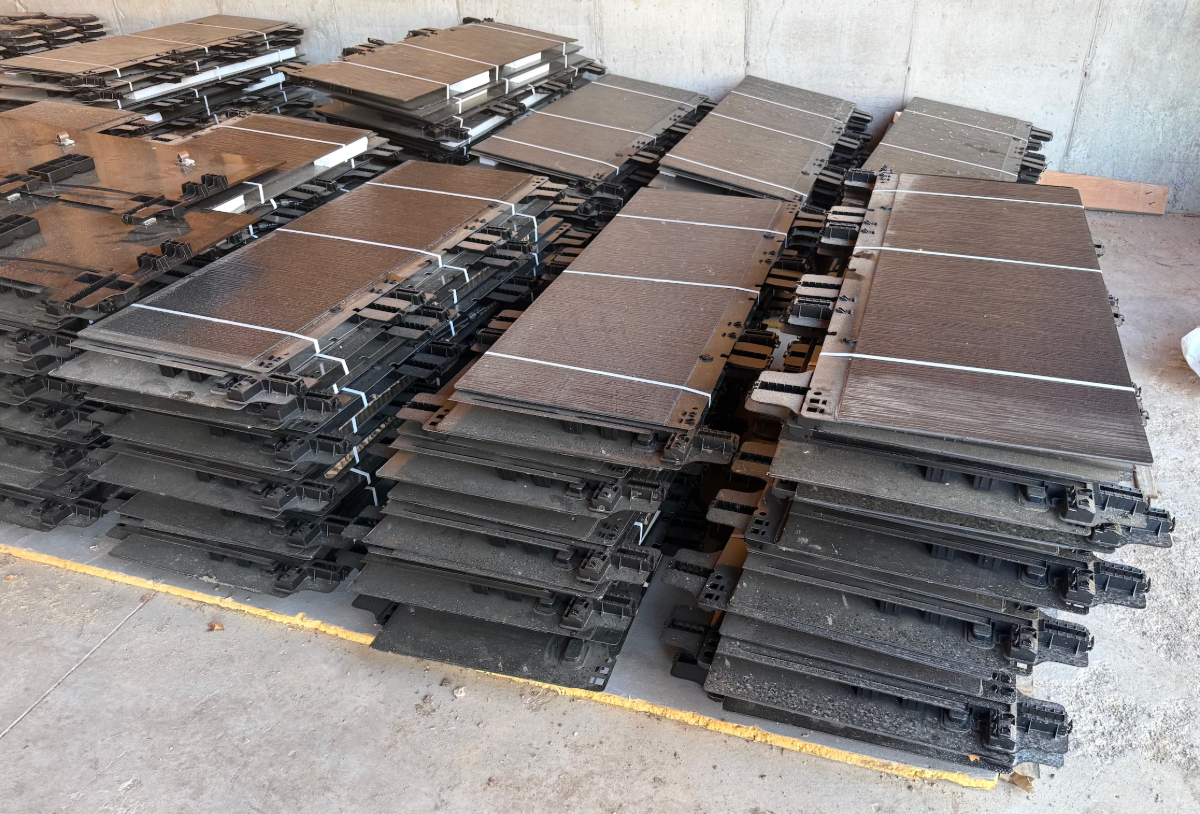

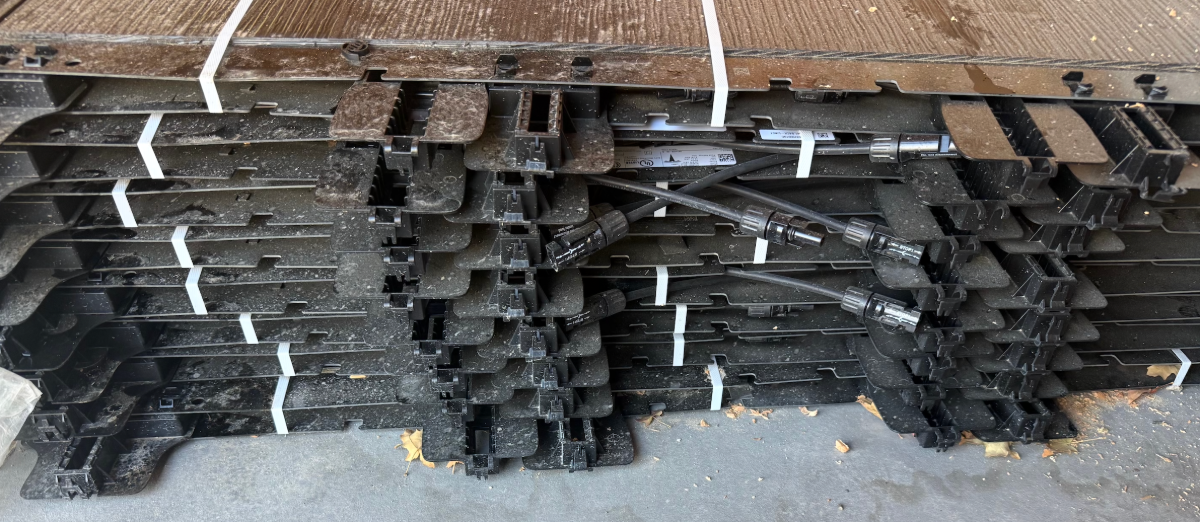

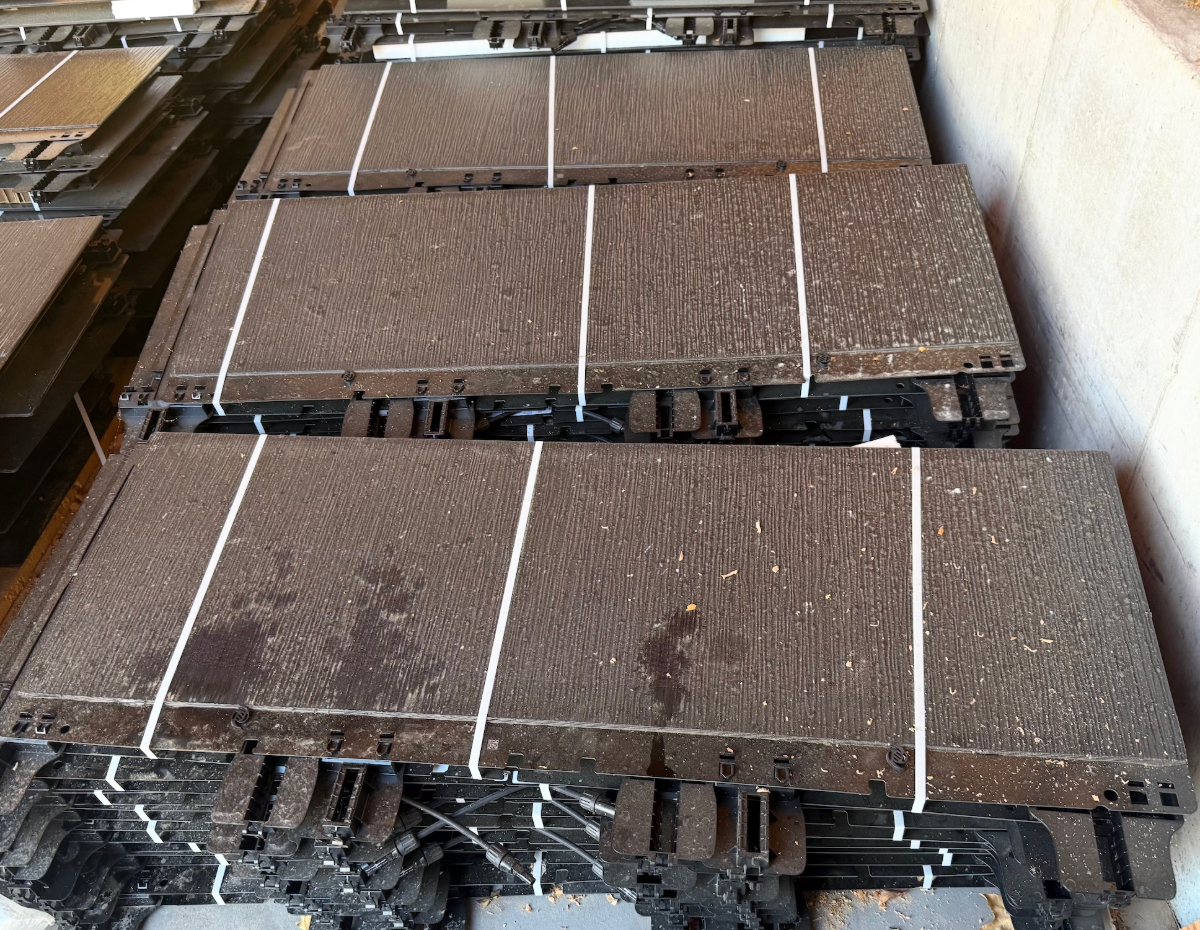

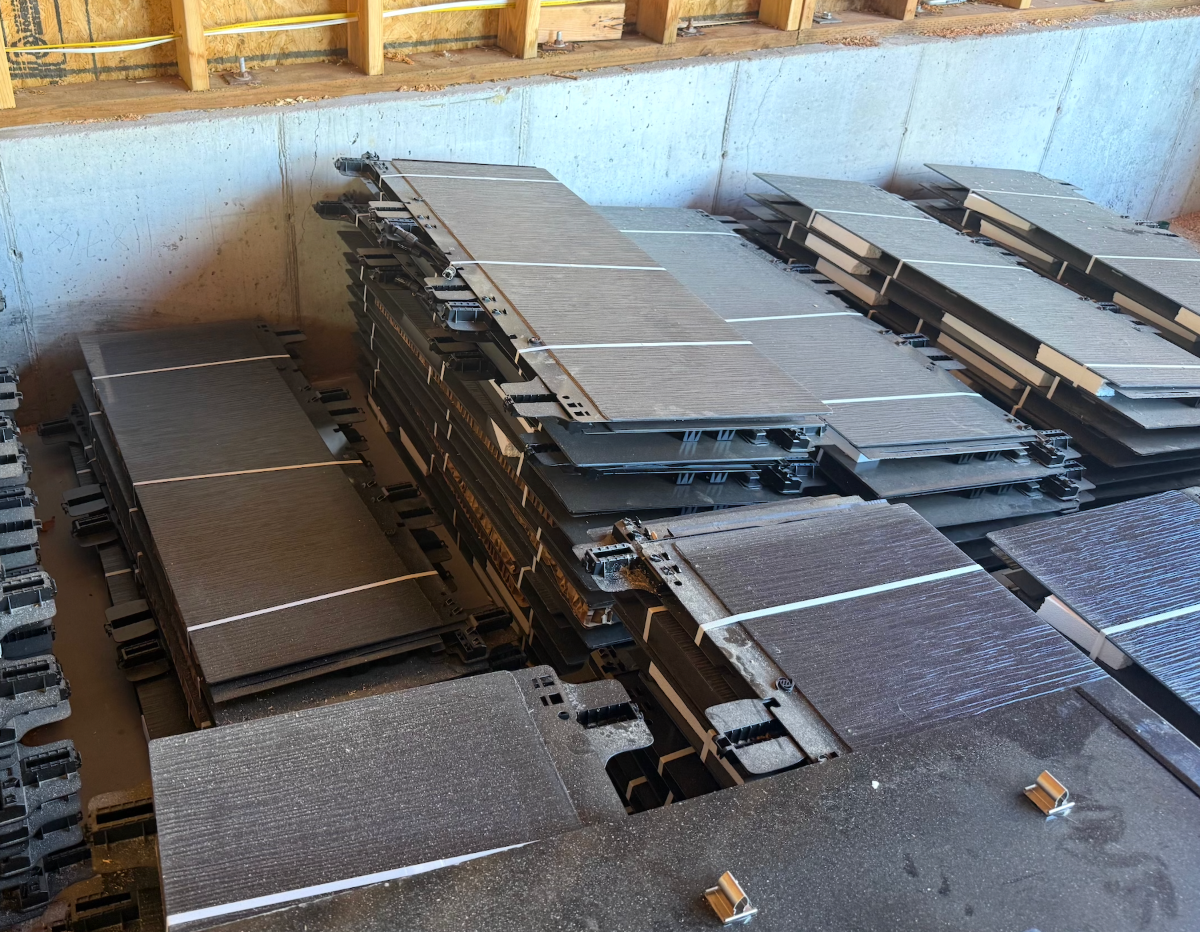

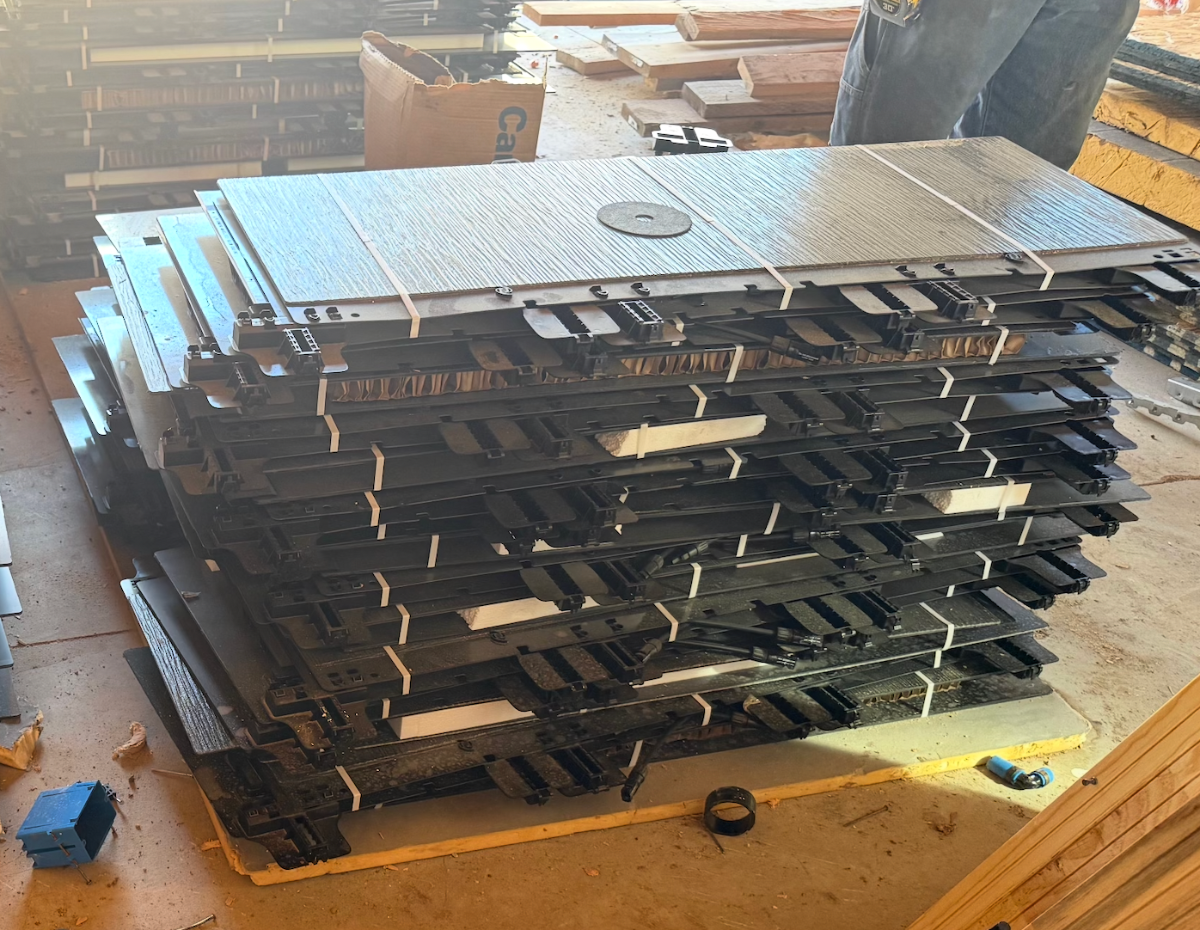

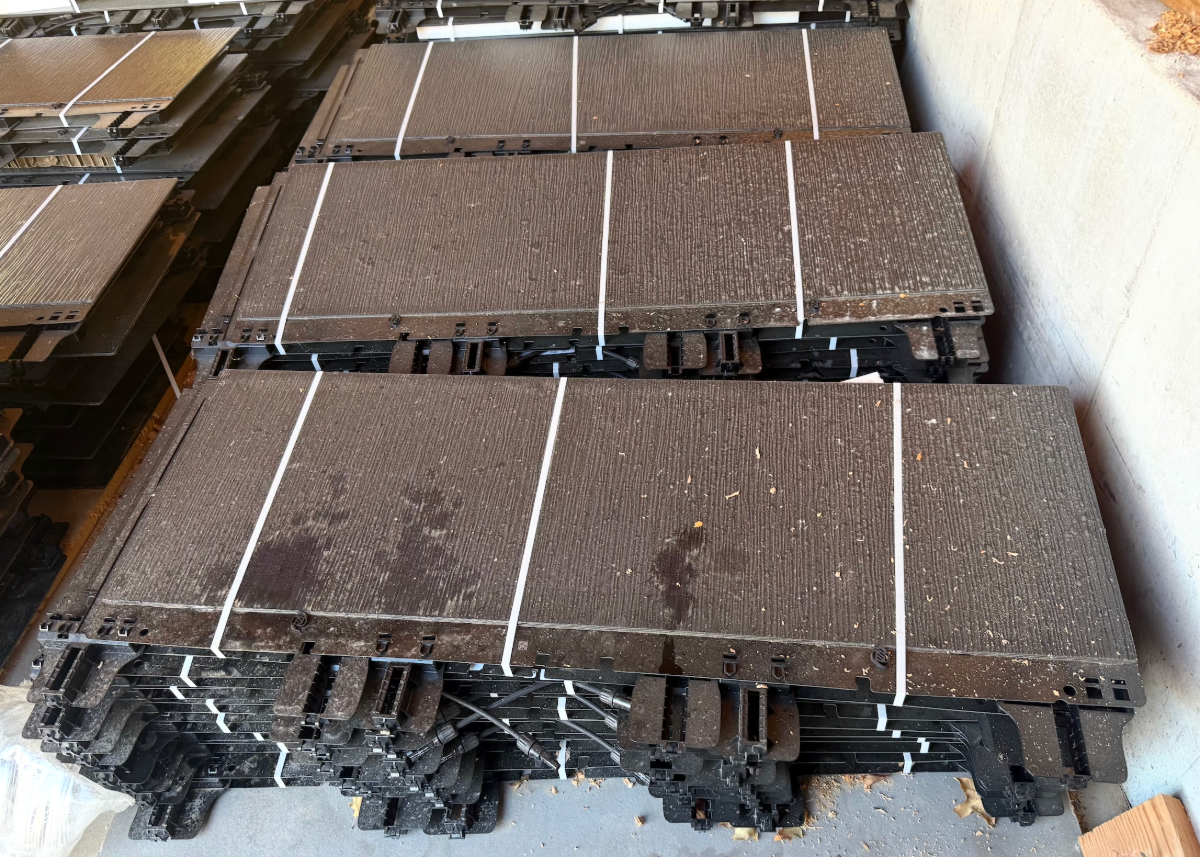

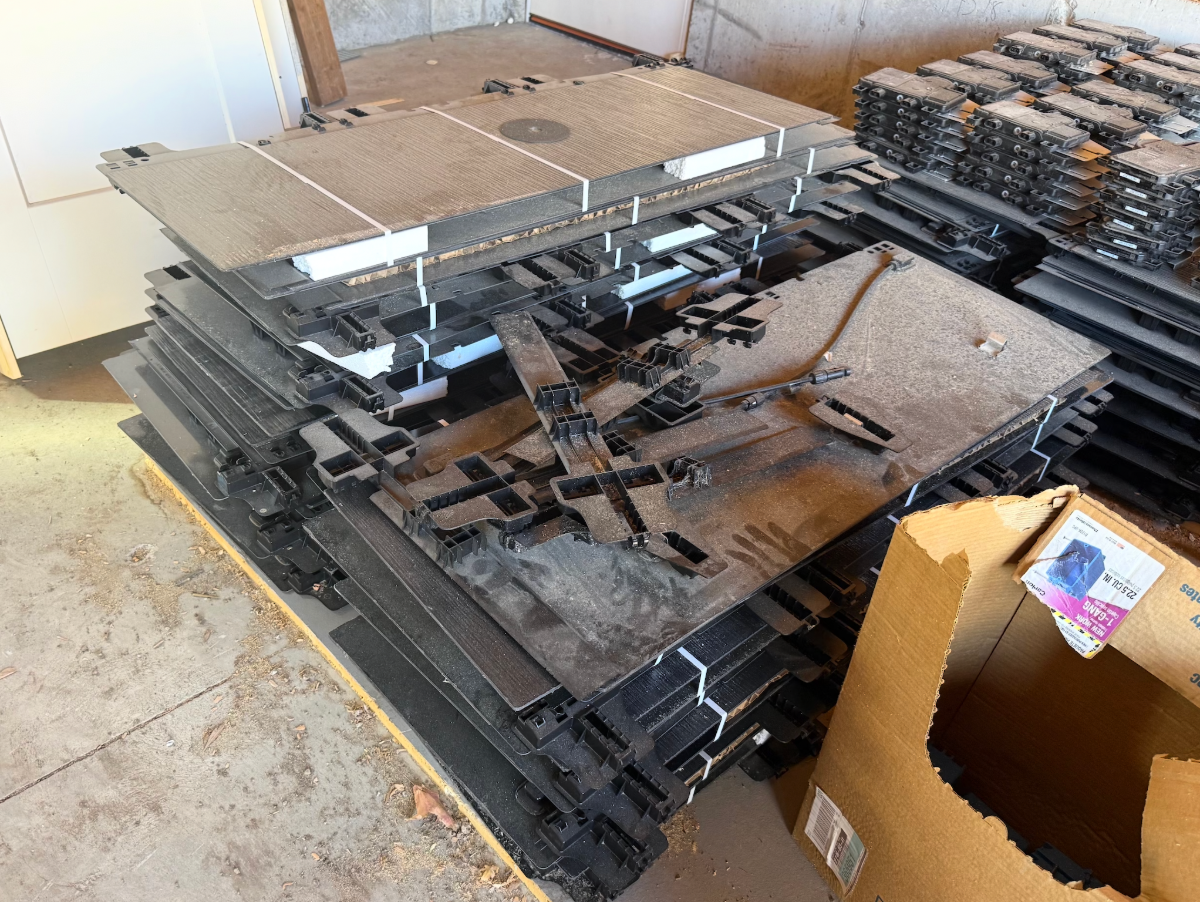

Tesla Solar Roof Tile

The Tesla Solar Roof seamlessly combines clean energy generation with premium architectural design, replacing traditional shingles with high-strength tempered glass tiles. Engineered for extreme durability and a sleek, invisible-from-the-street aesthetic, it transforms your entire roof into a solar powerhouse while integrating perfectly with the Tesla Powerwall.

Product Specifications

• Tile Dimensions: Approximately 15 inches by 45 inches (380 mm by 1140 mm) per standard tile unit.

• System Weight: Engineered to be lightweight, coming in at under 4 pounds per square foot (PSF) fully assembled—roughly half the weight of traditional concrete roofing tiles.

• Material Composition: Premium tempered glass with a fiberglass substrate and film layers for active solar tiles. Non-energy producing sections utilize matching non-active glass tiles or 24-gauge Galvalume steel perimeter tiles.

Electrical Performance

• Tile Power Output: Each active photovoltaic (PV) tile is rated for 72 Watts of power.

• Module Voltage & Current: Individual solar modules produce approximately 14 VDC (Direct Current) and 6 ADC.

• Maximum String Voltage: Regulated by a diode harness with a maximum limit of 600 VDC.

• Rapid Safety Shutdown: Rapid shutdown controls quickly limit string array conductors to 80 VDC and outgoing conductors to 30 VDC for emergency responder safety.

Durability & Environmental Ratings

• Fire Rating: UL 790 Class A (the highest possible fire safety rating for roofing).

• Wind Resistance: ASTM D 3161 Class F rating, engineered to withstand winds up to 156 mph.

• Hail & Impact Protection: UL 2218 Class 4 rating, capable of enduring severe hail impacts.
