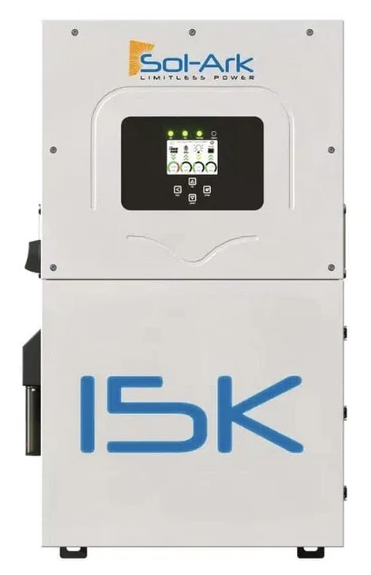

Sol-Ark Whole Home 15K-2P Hybrid Inverter

The Sol-Ark Whole Home 15K-2P Hybrid Inverteris an all-in-one residential energy storage and solar inverter system that delivers 15,000W of continuous AC output, a dual 200A grid pass-through, and 19,500W of PV solar input.

Key Features & Specifications

• Power Output: 15,000W continuous AC output (120/240V split-phase) with 24,000VA peak surge capacity for 10 seconds.

• Solar Integration: Features 3 full-size MPPT trackers across 6 DC PV ports to maximize yield across complex roof lines and partial shade.

• Grid Pass-Through & Backup: Built-in dual 200A pass-through for seamless service panel integration and a fast ~5ms automatic transfer time during outages.

• Battery Support: Compatible with 48V nominal lithium and lead-acid battery banks (275A max charge/discharge), featuring closed-loop BMS communication.

• Efficiency & Durability: Achieves up to 97.5% maximum efficiency and is housed in an IP65 / NEMA 3R weatherproof enclosure rated for outdoor or indoor installation.

• Smart Controls: Includes built-in Time-of-Use (TOU) programming, generator auto-start compatibility, AC-coupling support, and remote monitoring via the MySolArk AWS Platform.

• Scalability: Can be paralleled with up to 12 units total for larger energy requirements.

• Warranty: Backed by a 10-year manufacturer warranty.
