Meyer Burger 560 Watt Solar Panel

The Meyer Burger White XL MB_WG144Cyz_560 is a premium, high-efficiency solar module engineered to deliver elite energy yields for large-scale residential and commercial rooftops. Built using advanced heterojunction cell technology (HJT) and a patented SmartWire Connection Technology (SWCT®), this 560W monocrystalline panel maximizes energy collection even on hot or overcast days. Its clean, white-frame aesthetic ensures an understated and sophisticated appearance across your entire installation.

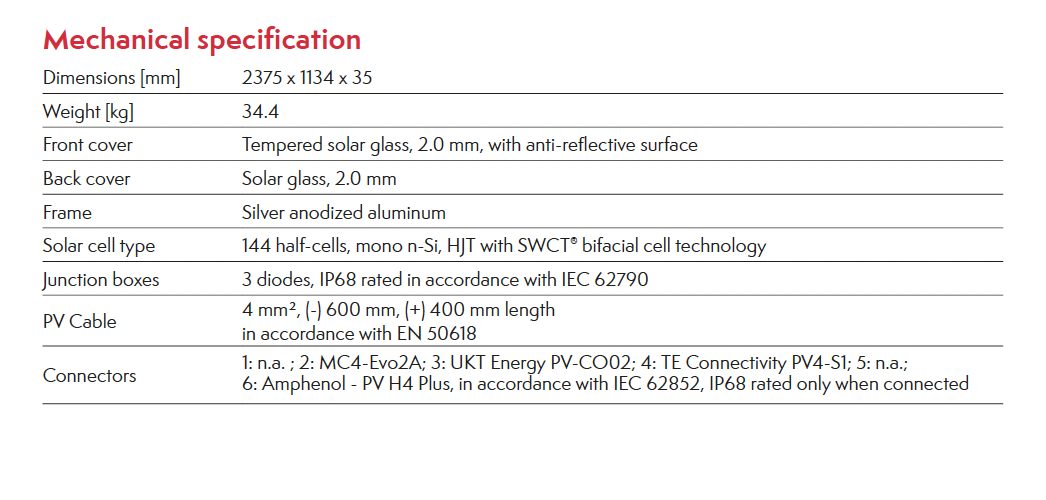

Physical Profile

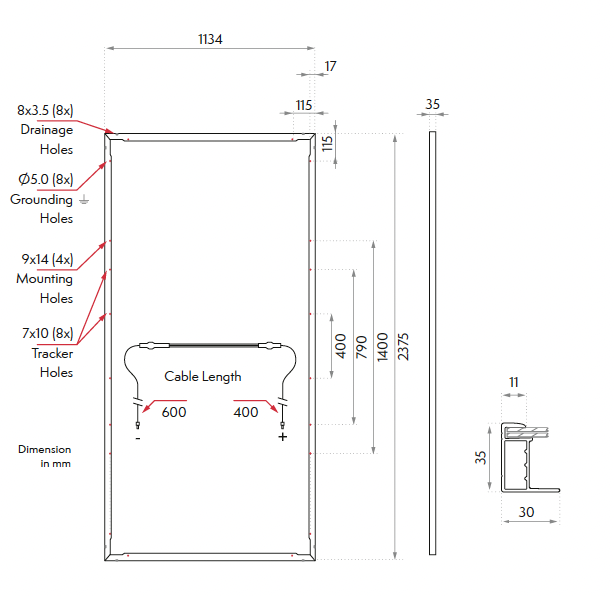

• Dimensions: 93.50 inches high by 44.65 inches wide by 1.38 inches deep (2375 mm x 1134 mm x 35 mm)

• Weight: 75.84 lbs (34.4 kg)

• Build Architecture: 144 monocrystalline n-Si half-cells surrounded by a silver anodized aluminum frame

• Glass Protection: 2.0 mm tempered solar glass with an integrated anti-reflective coating

Electrical Performance Specifications

• Nominal Power (Pmax): 560 Wp

• Module Efficiency: 20.80%

• Bifaciality Factor: 90%

• Maximum Power Voltage (Vmpp): 45.70 V

• Maximum Power Current (Impp): 12.30 A

• Open Circuit Voltage (Voc): 53.50 V

• Short Circuit Current (Isc): 13.10 A

• Maximum System Voltage: 1500 V

• Maximum Series Fuse Rating: 30 A

Temperature Resilience

• Temperature Coefficient of Pmax: -0.259 %/°C

• Temperature Coefficient of Voc: -0.234 %/°C

• Temperature Coefficient of Isc: 0.033 %/°C

• Nominal Module Operating Temperature (NMOT): 43 °C [1]
