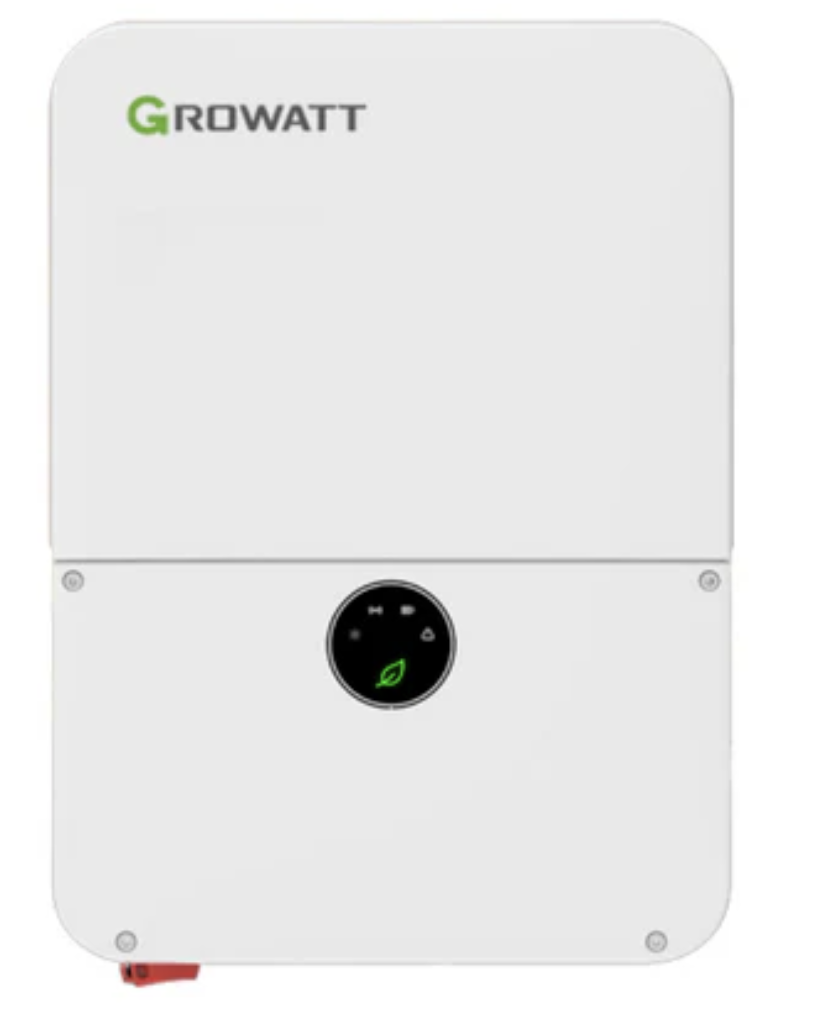

Growatt 11.4 kW Hybrid Inverter

The Growatt 11.4kW grid-tie inverter MIN11400TL-XH-US offers exceptional performance for large-scale residential or commercial solar setups. Equipped with four MPP trackers, the Growatt grid tie inverter ensures maximum energy harvest from multi-array installations, even in shaded areas. Its durable NEMA4X-rated enclosure allows reliable operation in harsh outdoor environments.

Advanced IoT integration provides hassle-free monitoring and management through intuitive apps, helping users maintain optimal system performance. The Growatt 11.4kW grid-tie inverter MIN11400TL-XH-US is a top-tier solution for those seeking efficiency, safety, and scalability.

Features:

Cutting-Edge Grid-Tie:

• 11400W Nominal Output

• High 550 VDC Input (22800W Max PV!)

• 4 MPP Trackers, 2 Strings Per MPP Tracker

• Up to 98.5% Efficiency

Quality Design:

• –13°F to +140°F Operating Temperature

• Natural Convection Cooling

• NEMA4X (IP65) Rated

• 'Aerospace grade' Flame-retardant Lightweight Materials

Communication:

• Built-in 4G/Wi-Fi Communication with APP, IoT integrated Cloud and monitoring

• IOS, Android & Windows Apps

Advanced Protection & Safety:

• UL Certified (1741)

• Type III AC Surge Protection

• AC Short Circuit Protection

• Ground fault & Grid Monitoring

• AFCI Protection

• Rapid Shutdown Capable, RFCI Protection

• Anti-islanding Protection

• Residual-Current Monitoring

SKU: 1519073

Rated Output Power: 11400W

Max PV Input: 22,800W

Max MPPT Operating Voltage: 550V

Rated AC Output: 240V

Max Output Current: 48A

UL Certified: Yes
