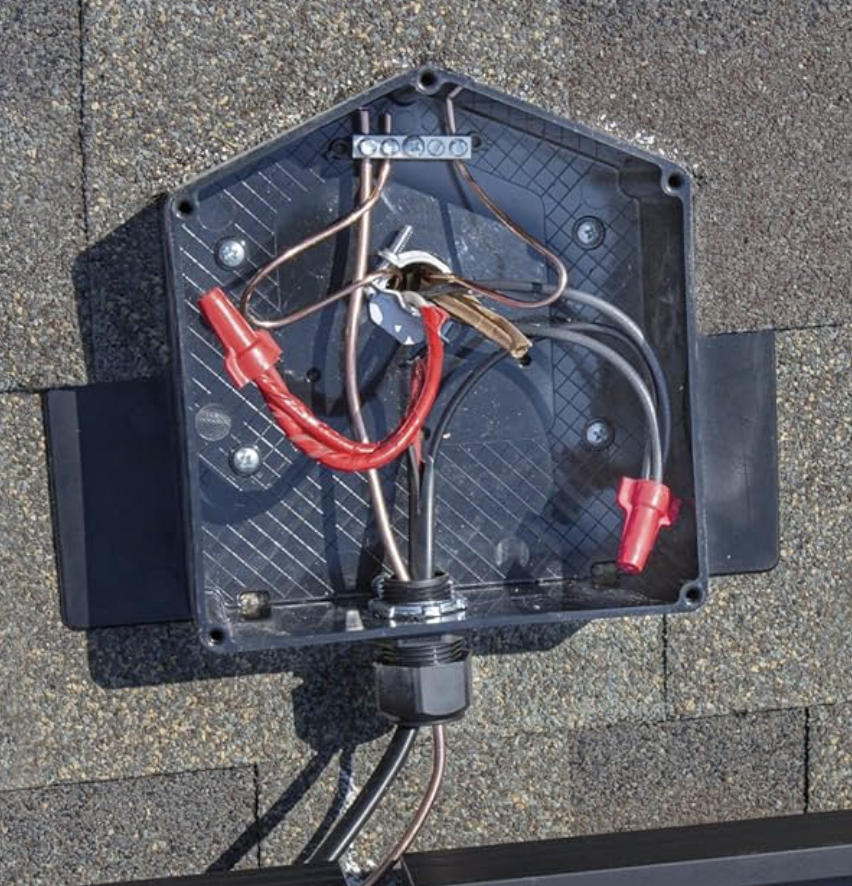

EZ Solar JB-1.2 Rooftop PV Junction Box

EZ Solar Rooftop PV Junction Box - Asphalt Shingle - Made from advanced durable polycarbonate. EZ Solar believes innovations is key to making Solar Simple! The most revolutionary junction bos on the market just got better! Designed with the installer in mind, the JB-1.2 makes installation fast and easy.

Simple to install

• Minimal Shingle Cutting

• Enter Through 3 Sidewalls

• Wider and Taller Sidewalls

High Quality

• Made from advanced durable poly-carbonate + superior components, UL1741, Type 3R

• 3 patented layers of water protection

• 2 Weep Holes for breath-ability

Specifications:

• Maximum Voltage: 1,000 Volts

• Maximum Current: 80 Amps

• Allowable Wire: 14 AWG – 6 AWG

• Spacing: Please maintain a spacing of at least ½” between uninsulated live parts and fittings for conduit, armored cable, and uninsulated live parts of opposite polarity.

• Enclosure Rating: Type 3R

• Roof Slope Range: 2.5 – 12:12

• Max Side Wall Fitting Size: 1”

• Max Floor Pass-Through Fitting Size: 1”

• Ambient Operating Conditions: (-35°C) - (+75°C)
