DAH 500 Watt Bifacial Solar Panel

The DAH Solar DHN-54Z16/DG(BB)-500W is an N-type TOPCon bifacial full-black dual-glass solar module featuring 77.2 x 44.6 x 1.2 inches dimensions, 58.6 lbs weight, 1500V maximum system voltage, and 14.75A maximum power amperage.

Dimensions and Weight

• Length: 77.2 inches (1962 mm)

• Width: 44.6 inches (1134 mm)

• Thickness / Depth: 1.18 inches (30 mm)

• Weight: 58.6 lbs (26.6 kg)

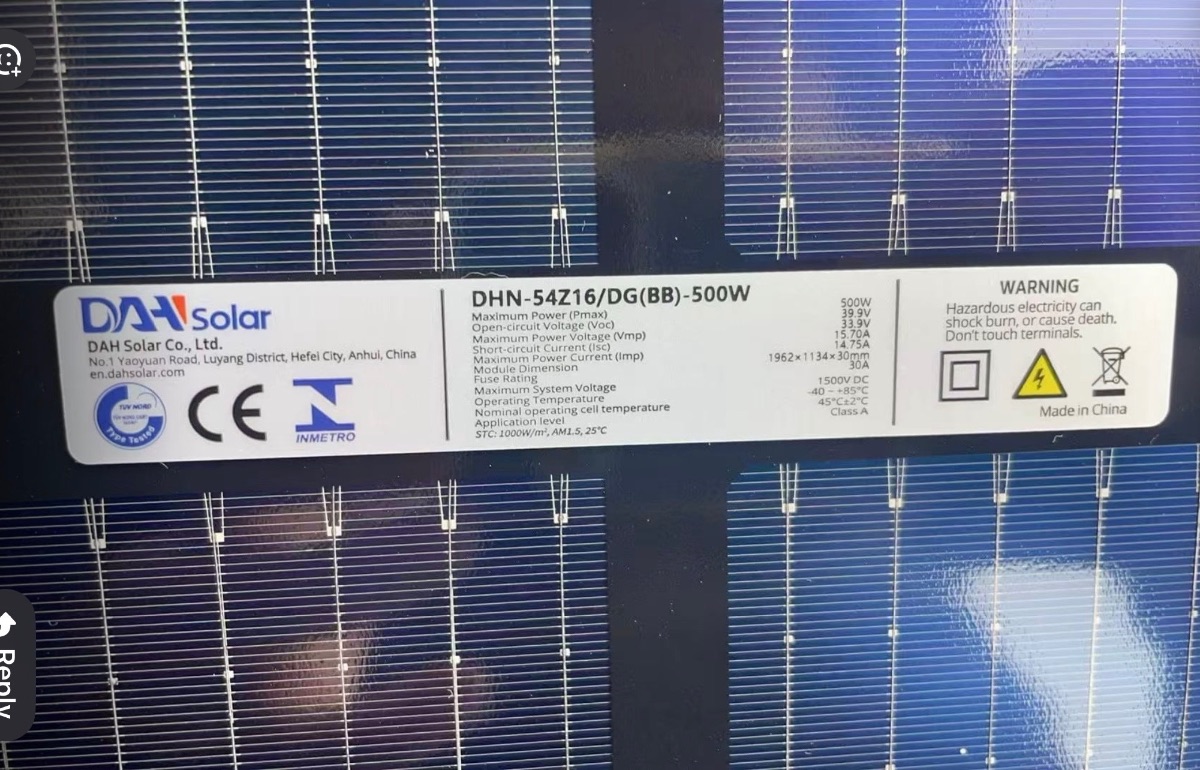

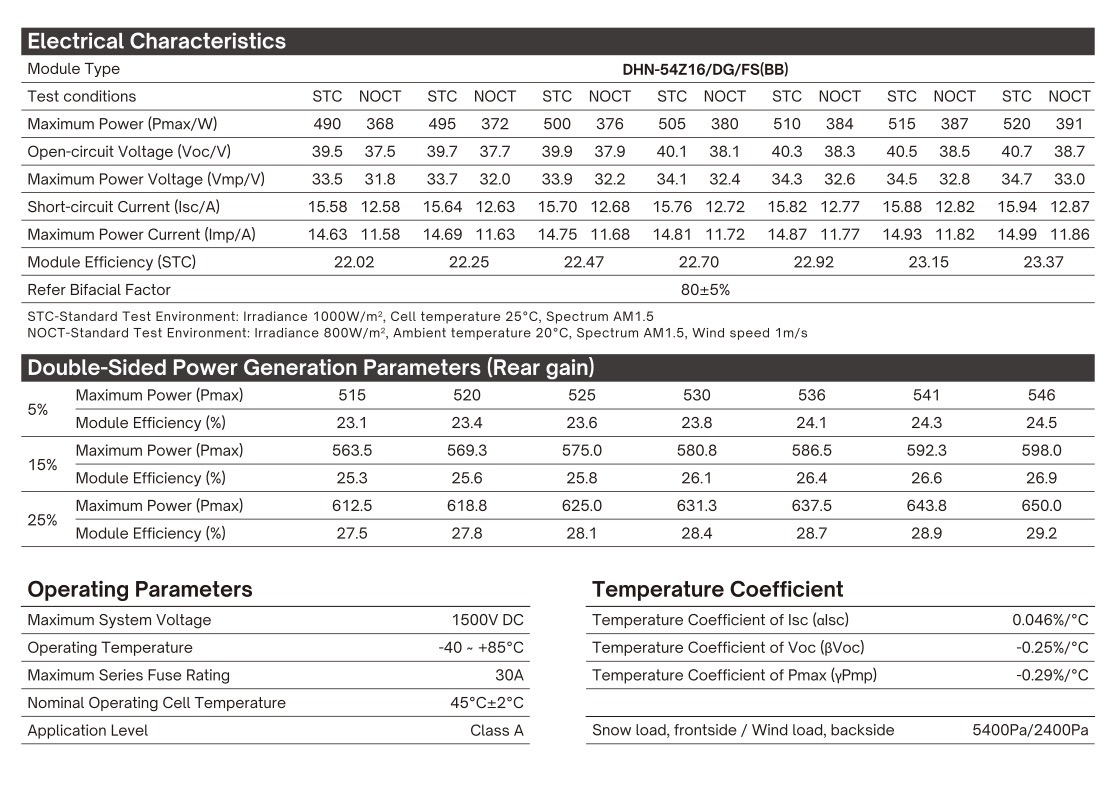

Electrical Specifications (At Standard Test Conditions - STC)

• Rated Maximum Power (\(P_{max}\)): 500W

• Voltage at Maximum Power (\(V_{mp}\)): 33.9V

• Current at Maximum Power (\(I_{mp}\)): 14.75A

• Open-Circuit Voltage (\(V_{oc}\)): 39.9V

• Short-Circuit Current (\(I_{sc}\)): 15.7A

• Maximum System Voltage: 1500V DC

• Maximum Series Fuse Rating: 30A

Key Design & Materials

• Cell Type: N-type TOPCon (108 cells / 6 × 18 layout)

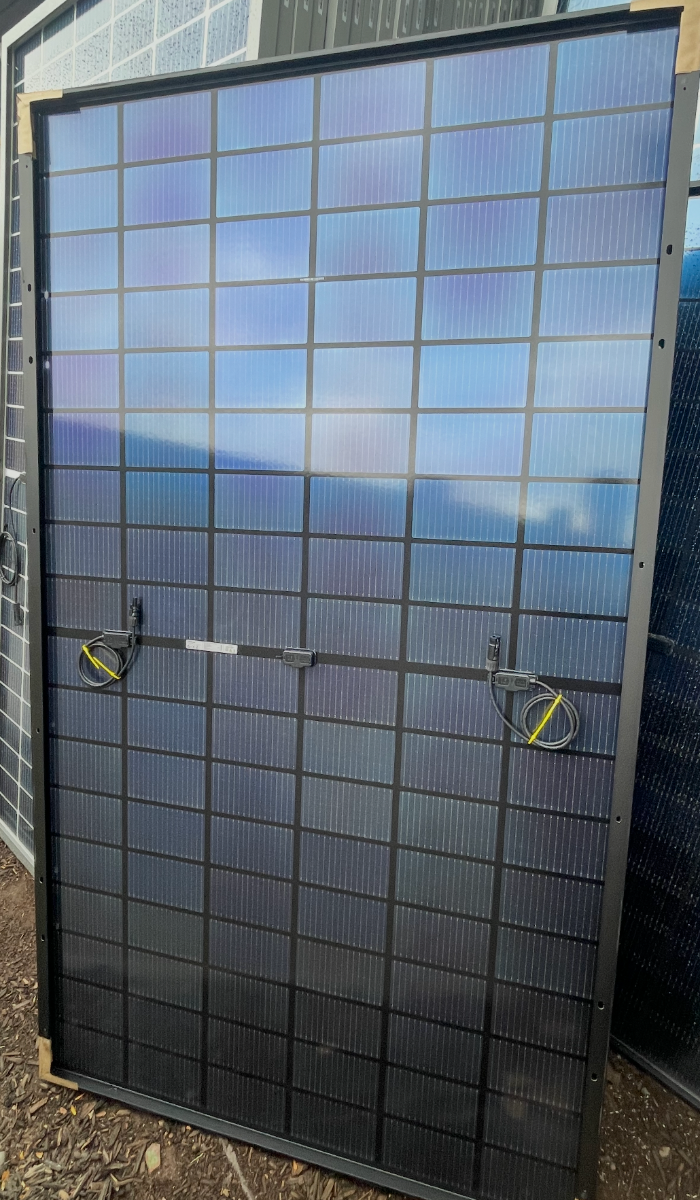

• Construction: Bifacial Double Glass (2.0mm high transmission glass on front and rear)

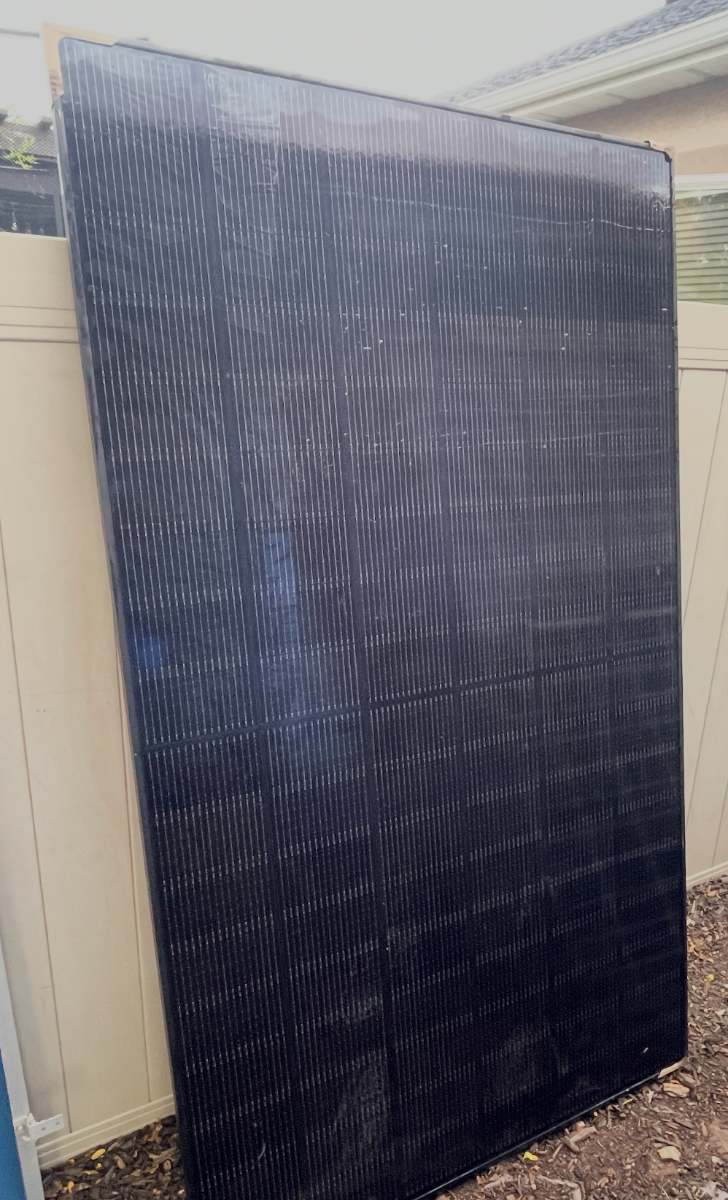

• Aesthetics: Full Black (BB design)
