Canadian Solar 450 Watt Solar Panel

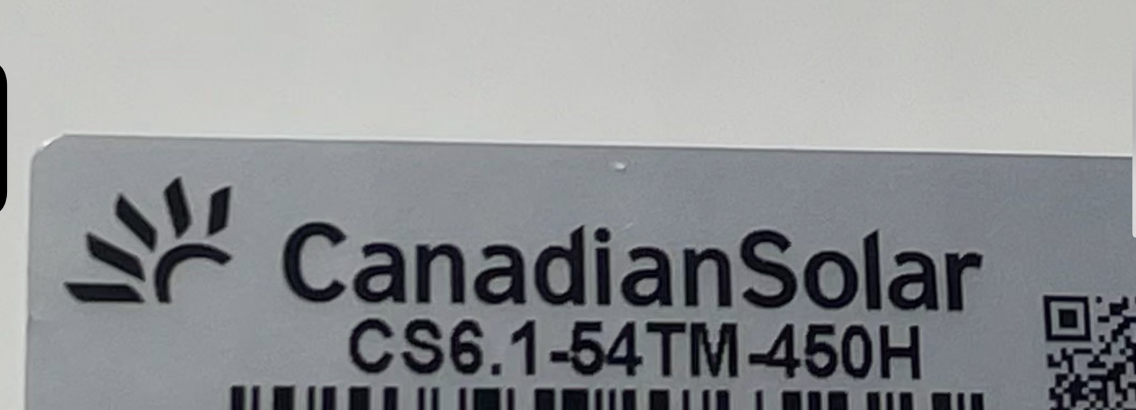

The Canadian Solar TOPHiKu6 CS6.1-54TM-450H is a premium, high-efficiency monocrystalline solar panel engineered to deliver outstanding power output for residential and commercial installations. Utilizing advanced N-type TOPCon technology with a 108 half-cell layout, this all-black panel provides exceptional energy production, minimal degradation rates, and enhanced performance even in low-light conditions.

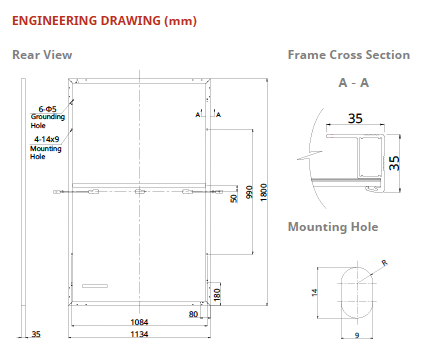

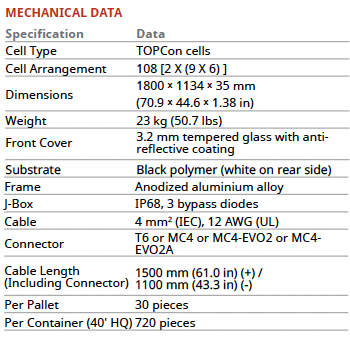

Physical Specifications

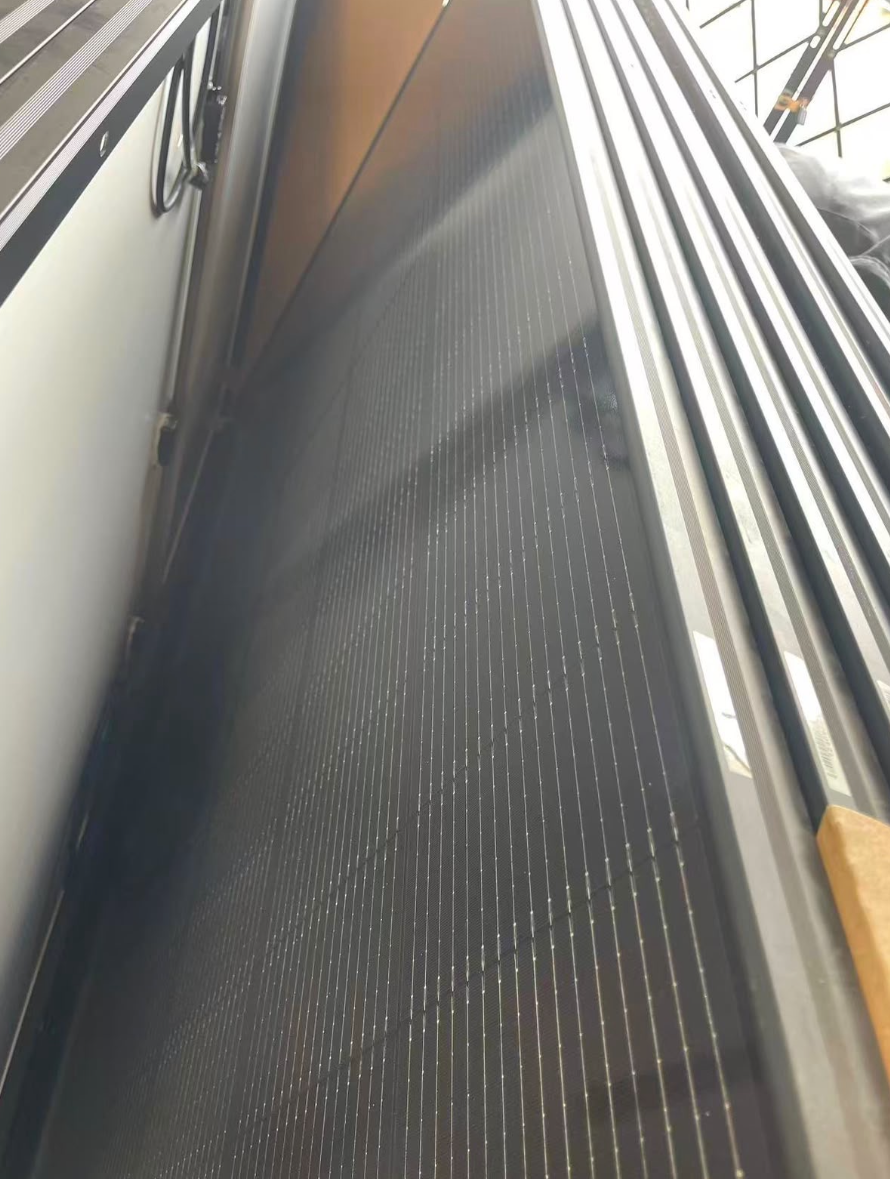

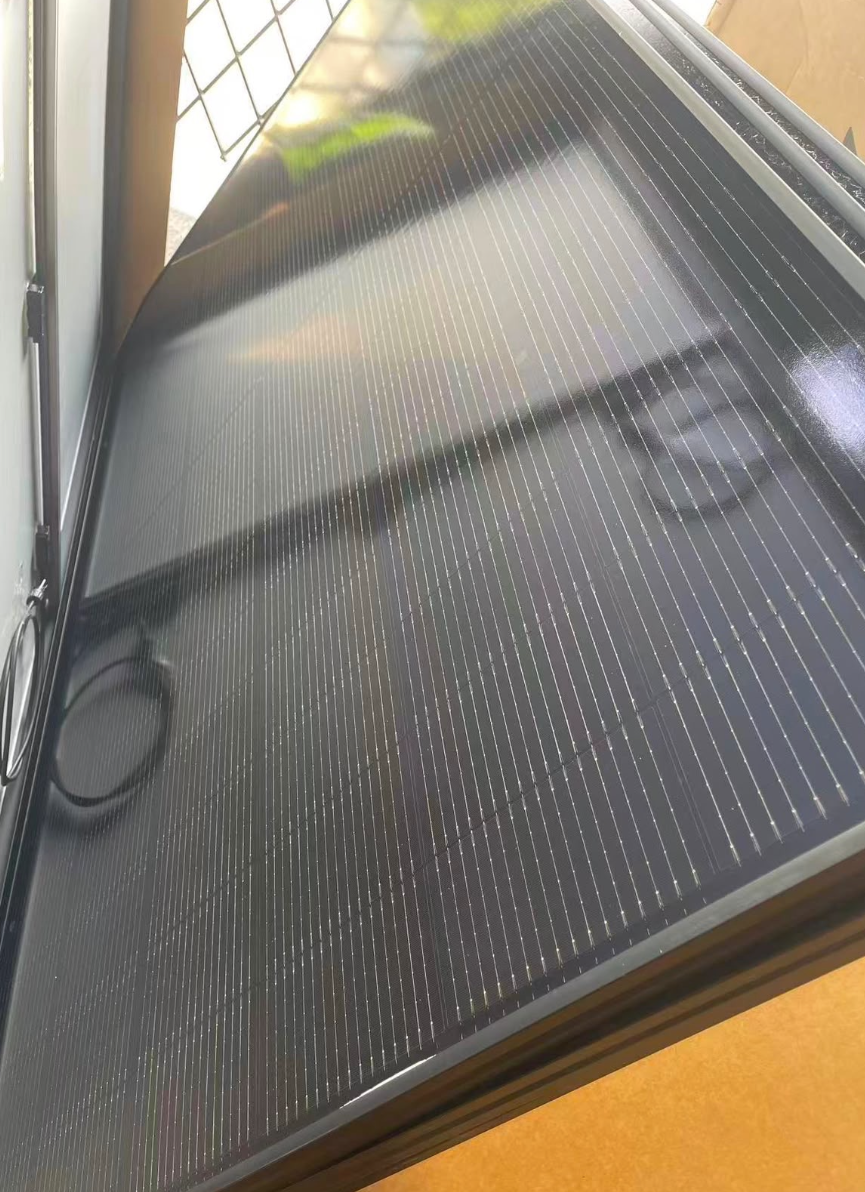

Designed with a sleek, aesthetic-focused all-black look, the module features a sturdy black anodized aluminum alloy frame and high-transparency tempered glass.

• Length: 70.9 inches

• Width: 44.6 inches

• Thickness: 1.38 inches

• Weight: 50.7 lbs

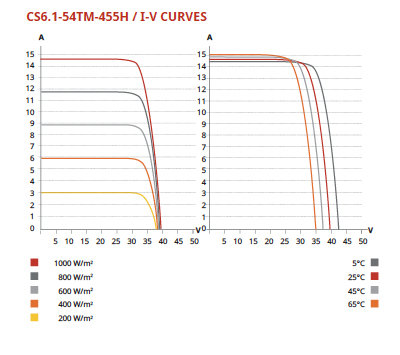

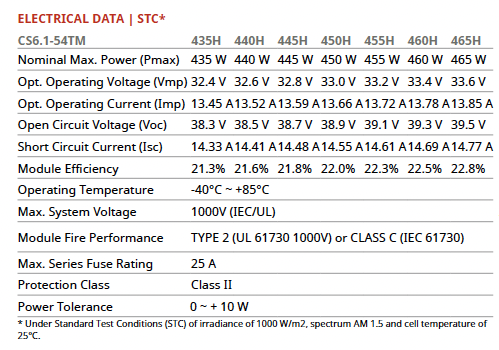

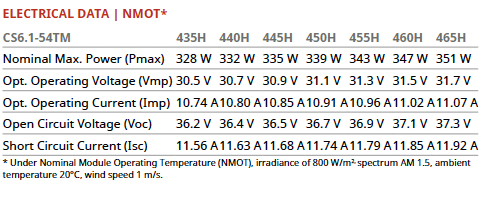

Electrical Performance

Under Standard Test Conditions (STC), this module performs at a high efficiency of 22.0% to maximize energy yield per square inch.

• Nominal Maximum Power (Pmax): 450 Watts

• Optimum Operating Voltage (Vmp): 33.0 Volts

• Optimum Operating Current (Imp): 13.66 Amps

• Open Circuit Voltage (Voc): 38.9 Volts

• Short Circuit Current (Isc): 14.55 Amps

• Maximum System Voltage: 1500 Volts (IEC/UL)

• Maximum Series Fuse Rating: 25 Amps
