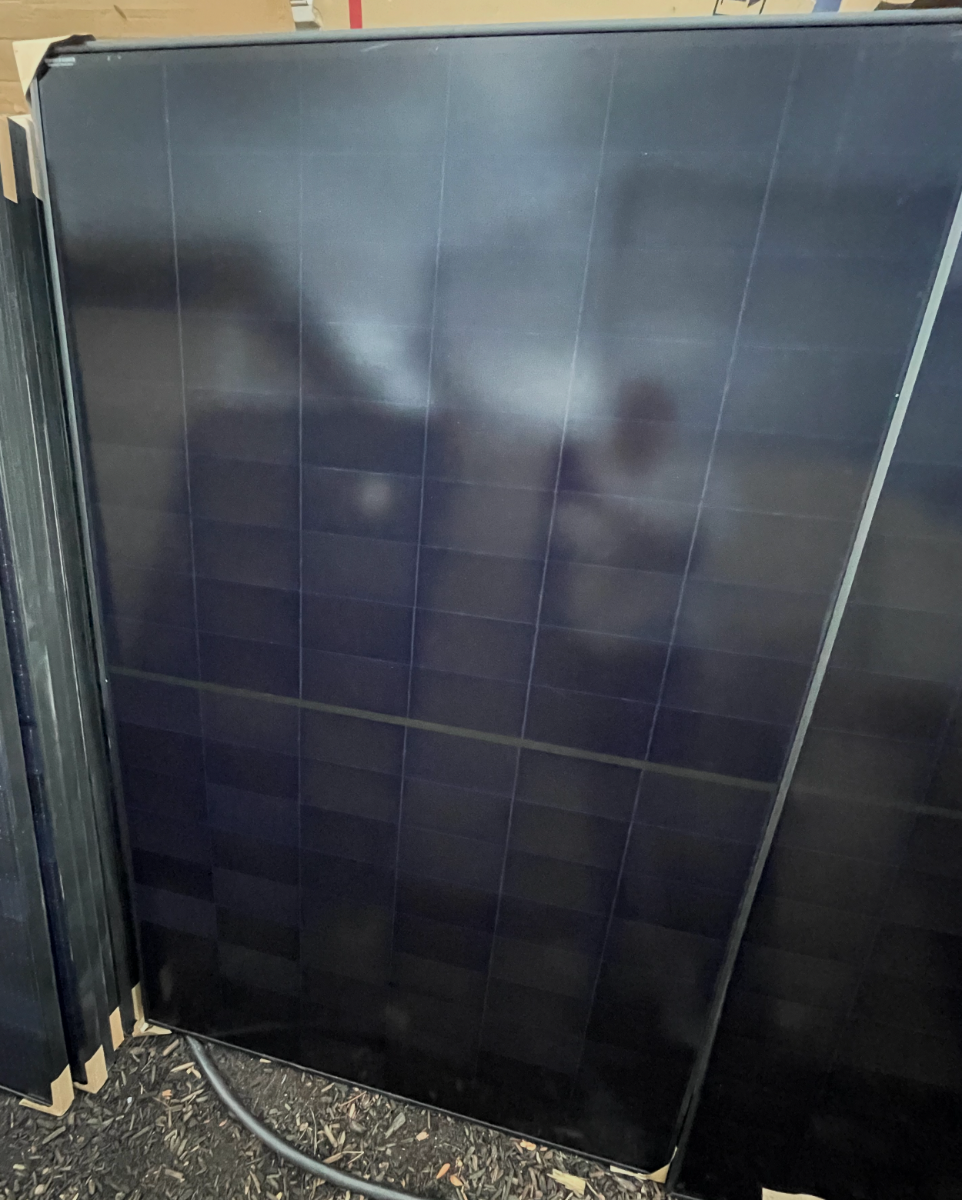

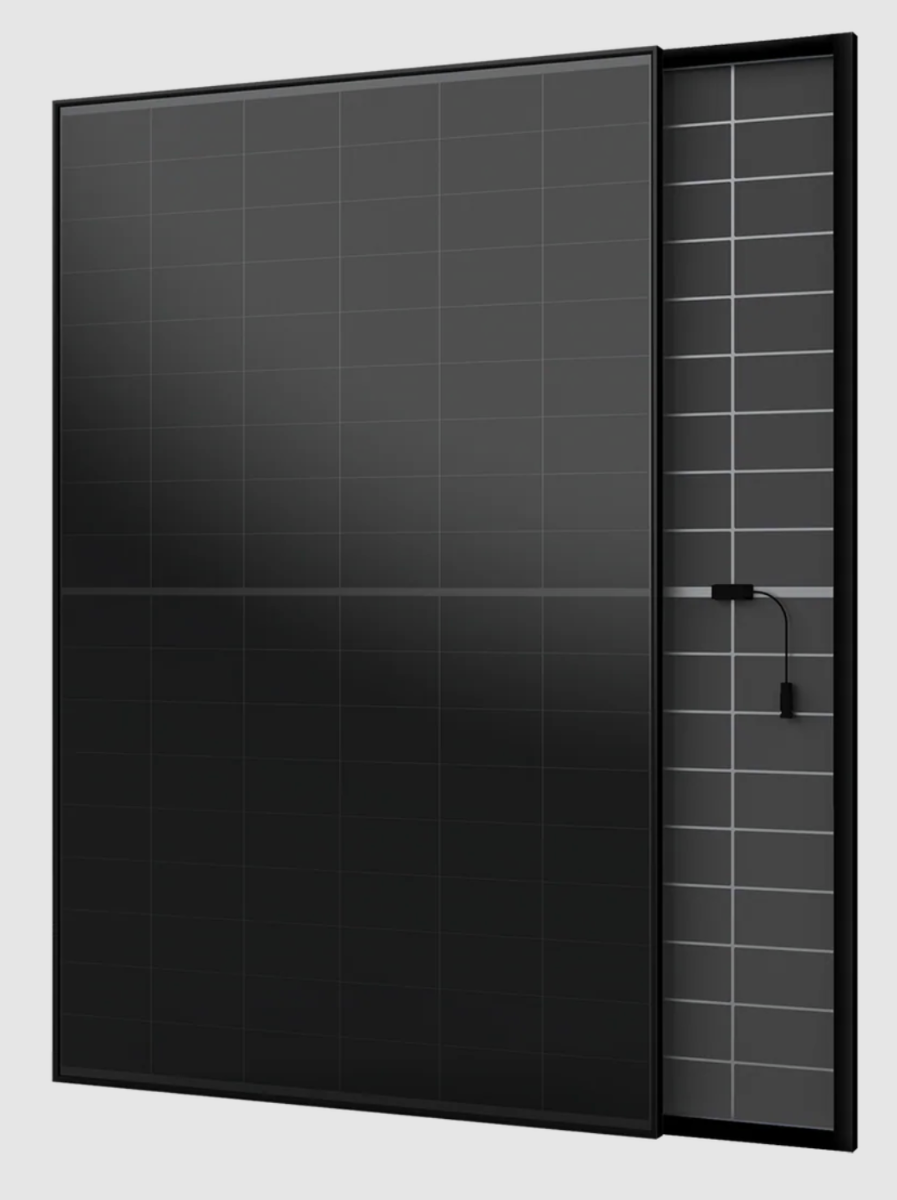

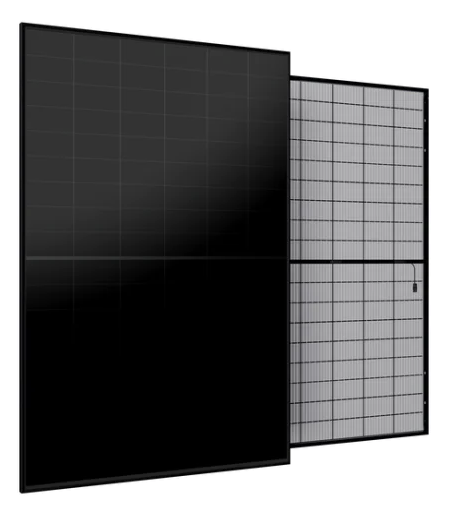

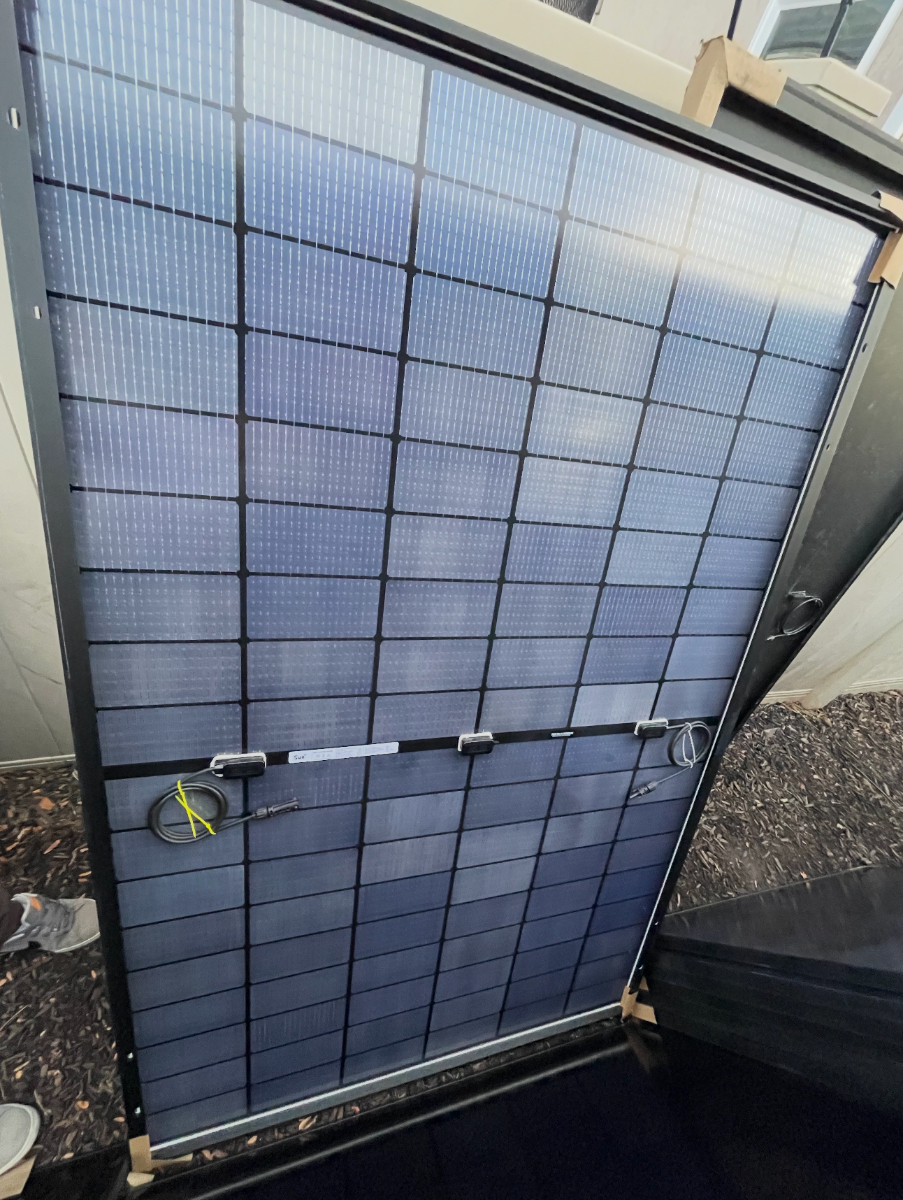

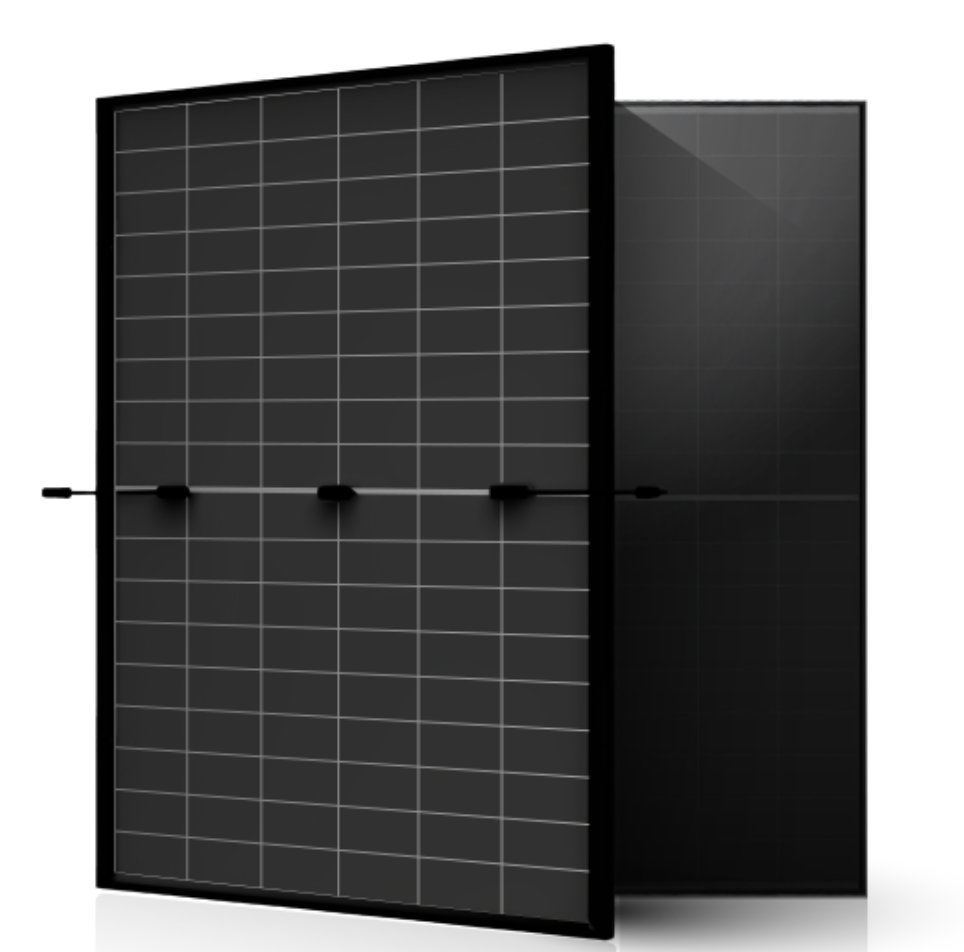

AIKO Neostar 485 Watt Bifacial Solar Panel

The AIKO-A485-MCE54Dw is a high-performance, full-black solar module designed for maximum efficiency and elegant aesthetics, making it an excellent choice for residential and commercial solar installations. Utilizing advanced N-type ABC (All-Back-Contact) cell technology, this module offers superior energy conversion and long-term reliability.

Product Features

• High Efficiency: Achieve an outstanding module efficiency of up to 23.3%.

• Durable Construction: The robust glass-glass design provides enhanced durability and resistance to harsh weather conditions, including snow loads up to 5400 Pa and wind loads up to 2400 Pa.

• Elegant Design: The all-black aesthetic ensures the panel blends seamlessly with most roof types for a sleek, modern look.

• Reliable Performance: Backed by a 25-year product warranty and a 30-year linear performance warranty, ensuring peace of mind.

Technical Specifications (STC: Standard Test Conditions)

• Dimensions: Approximately 69.2 inches (length) by 44.6 inches (width) by 1.18 inches (depth) (1757 mm x 1134 mm x 30 mm).

• Weight: Approximately 54 lbs (24.5 kg).

• Wattage: Rated at 485 Wp (Watt-peak).

• Voltage:

  • Voltage at Maximum Power (Vmpp): 33.99 V

  • Open Circuit Voltage (Voc): 40.35 V

  • Maximum System Voltage: 1500 V

• Amperage:

  • Current at Maximum Power (Impp): 13.39 A

  • Short Circuit Current (Isc): 13.80 A

  • Series Fuse Rating: 25 A
